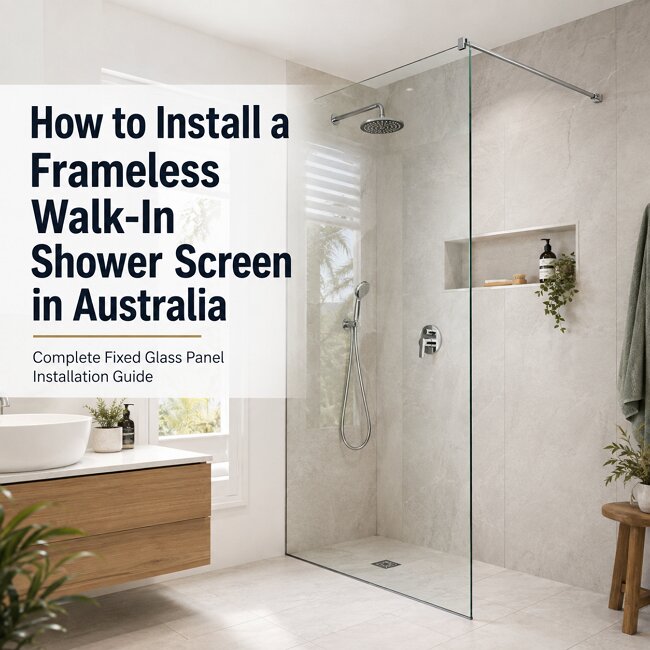

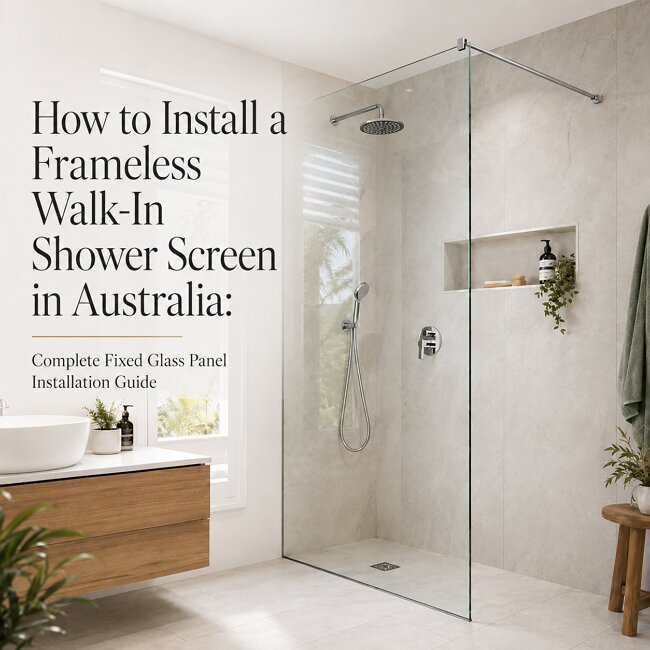

A frameless walk-in shower screen is one of the simplest ways to create a modern, open bathroom while helping contain water inside the shower area. Unlike a traditional shower enclosure with a hinged or sliding door, a walk-in shower screen generally uses a single fixed glass panel to create a splash barrier while leaving the entrance open.
Installing a fixed glass shower screen correctly, however, involves more than simply fixing a sheet of glass to the wall. Accurate measurements, suitable wall fixings, safe handling of toughened glass, correct support-bar positioning and proper silicone sealing all affect the safety and performance of the finished shower.
This guide explains how to install an Elegant Showers frameless walk-in shower screen and covers the key considerations Australian homeowners, bathroom renovators and installers should understand before beginning.
Elegant Showers Frameless Walk-In Shower Screen Sizes and Specifications
Elegant Showers fixed walk-in shower panel is designed as a minimalist, doorless shower screen for Australian bathrooms.
| Nominal Shower Screen Width | Adjustable Installation Range |
|---|---|
| 800mm | 785–800mm |
| 900mm | 885–900mm |
| 1000mm | 985–1000mm |
| 1100mm | 1085–1100mm |
| 1200mm | 1185–1200mm |
Each panel is 2000mm high and manufactured from 8mm toughened glass with an easy-clean nano coating. The shower screen also includes a 1000mm SS304 stainless steel support bar designed to improve the stability of the fixed glass panel.
The reversible configuration allows the shower screen to be installed on either the left-hand or right-hand side of the shower area, making it suitable for a wide range of bathroom layouts.
Frameless Walk-In Shower Screen Installation Checklist
Before using your new walk-in shower, confirm that you have:
- selected the correct shower screen size
- checked the finished wall dimensions
- confirmed the wall is plumb
- identified safe drilling and fixing positions
- protected the toughened glass edges
- secured the wall channel correctly
- levelled the fixed glass panel
- installed the stainless steel support bar
- checked every fitting and gasket
- applied sanitary silicone to the correct joints
- allowed the sealant to cure completely
- checked the screen for stability before use
A correctly measured and installed frameless walk-in shower screen provides a clean, open appearance while helping create a practical shower space. Taking the time to check measurements, waterproofing, structural fixings, glass alignment, support-bar positioning and silicone sealing can make a major difference to the long-term performance of the installation.
Step-by-step installation Guide of Elegant Showers Frameless Walk-In Shower Screen
Step 1 — Set out the wall channel
Hold the wall channel/profile in the required position and use a spirit level to make it perfectly vertical. Mark each fixing hole through the channel.
· Use the actual finished panel position rather than assuming the wall or shower base is square.
· Keep the channel within the product’s available 15 mm adjustment range.
· Confirm concealed services and waterproofing requirements before making any holes.
|
CAUTION: Do not use the glass panel as a drilling template. |
Step 2 — Drill and secure the wall channel
Drill the marked holes with a bit suitable for the finished wall surface and the selected fixings. The source A-series manual illustrates an approximately 6 mm hole for its supplied wall plugs. Insert the plugs where appropriate, then screw the channel firmly to the wall.
· On tiled walls, drill the tile face carefully without impact/hammer mode, then change technique as appropriate for the substrate behind the tile.
· Use fixings that engage sound structure. Do not rely on tile alone to carry the screen.
· Re-check the channel with a spirit level before fully tightening the screws.
Step 3 — Insert the fixed glass panel and adjust the width
With two people, lift the glass panel and guide the glass-side profile/insert into the fixed wall channel. Slide it to the required finished width, staying within the listed adjustment range.
· Keep the glass edge protected from the shower base and wall tiles during the lift.
· Check the exposed vertical glass edge is plumb.
· Check the lower glass edge is correctly positioned over the shower base/floor line and has no hard point contact.
· Fit the top cap/finishing cap where supplied once the panel position is confirmed.
|
CAUTION: Never force the glass into the channel or strike the glass edge with a mallet. |
Step 4 — Assemble and position the support bar
Fit the support-bar glass clamp over the top edge of the panel using the supplied gasket. Connect the bar and wall bracket, then set the support bar level. Position the wall bracket against the wall and mark its fixing holes.
· The product listing states the supplied SS304 support bar is 1000 mm long.
· Keep the protective gasket between all metal clamp surfaces and the glass.
· Do not over-tighten the glass clamp. Tighten evenly only enough to secure the panel.
· Do not shorten or modify the support bar unless the supplied fitting is specifically designed for it or Elegant Showers confirms the modification.
Step 5 — Fix the support-bar wall bracket
Move or support the bar as needed, drill the marked wall-bracket holes, install suitable plugs/anchors and screw the bracket securely to the wall. Reassemble the support bar and tighten the bracket and glass-clamp fasteners.
· Re-check that the glass is plumb and the support bar is level before final tightening.
· Ensure the support bar is not pulling or twisting the glass out of alignment.
· Confirm all gaskets remain correctly seated.
Step 6 — Seal the outside perimeter and cure
Clean and dry the sealing surfaces. Apply a continuous bead of sanitary-grade bathroom silicone to the OUTSIDE junctions where the wall profile meets the wall and where the screen/profile meets the shower base or finished floor. Tool the bead neatly, then leave the screen undisturbed.
· The source manual depicts the sealant on the outside perimeter rather than filling the inside drainage path.
· Remove masking tape before the silicone skins over, if masking tape is used.
· Keep the shower completely dry for at least 24 hours, or longer if required by the silicone manufacturer.
|
CAUTION: Do not use the shower before the sealant has cured. |
Final inspection checklist
☐ Wall channel is plumb and securely fixed
☐ Glass panel is plumb and within the nominal adjustment range
☐ Glass edges and corners are free from chips or hard contact points
☐ Support bar is level and securely fixed to sound structure
☐ All support-bar gaskets are correctly positioned
☐ Fasteners are snug but not excessively tightened against glass
☐ Outside silicone bead is continuous at the required junctions
☐ Inside drainage path has not been unnecessarily blocked with silicone
☐ Screen has remained dry for at least 24 hours
☐ No movement, rattling or glass-to-metal contact is present after curing
Common Frameless Walk-In Shower Screen Installation Mistakes
Avoiding a few common mistakes can significantly improve the safety and performance of a frameless fixed glass shower screen.
Installing the screen against an out-of-plumb wall
Major wall variation can create uneven gaps, poor support-bar alignment and unwanted stress in the glass.
Using unsuitable wall fixings
Fixings designed for masonry may not perform correctly in hollow walls or other substrates. Choose fixings based on the actual wall construction.
Damaging waterproofing
Drilling into a tiled shower wall without considering the waterproof membrane can create future moisture problems.
Overtightening glass clamps
Metal hardware should hold the panel securely without applying excessive pressure to the glass.
Striking the edge of toughened glass
Protect glass corners at every stage of installation.
Installing a panel that is too narrow
An undersized fixed panel may leave a larger splash zone than expected.
Sealing the wrong joints
Incorrect silicone placement can trap moisture or interfere with intended drainage.
Using the shower before the sealant cures
Even if the silicone feels dry on the surface, it may not have cured sufficiently underneath.
FAQs about Frameless Walk-In Shower Screen
What size walk-in shower screen do I need?
Choose the screen width according to the finished shower dimensions, shower-head location, splash zone and required entry clearance. Elegant Showers offers 800mm, 900mm, 1000mm, 1100mm and 1200mm fixed-panel options.
Is an 800mm walk-in shower screen wide enough?
An 800mm screen can work well in a compact shower, but splash performance depends on the depth of the shower, water pressure and shower-head direction. A wider panel may provide better water containment where space permits.
Is a 900mm or 1000mm shower screen better?
A 900mm screen generally provides slightly more open access, while a 1000mm panel provides additional splash coverage. The better choice depends on the total shower dimensions and available walk-in entry space.
Does a frameless shower screen need a support bar?
Support requirements depend on the shower-screen system. The Elegant Showers fixed-panel design includes a 1000mm SS304 support bar as part of its intended installation system to stabilise the glass.
Can you drill or cut toughened shower glass?
No. Toughened shower glass should not be drilled, cut or reshaped after toughening. Required machining is completed before the glass undergoes the toughening process.
Do you silicone both sides of a shower screen?
Not necessarily. Follow the installation instructions for the specific shower screen. Some profiles are designed to be sealed externally so water inside the channel can drain towards the shower.
How long should silicone dry before using the shower?
Where the shower-screen instructions require 24 hours, wait at least 24 hours before exposing the installation to water. Follow the silicone manufacturer's instructions if a longer curing time is specified.
Conclusion: Choose the Right Frameless Walk-In Shower Screen for Your Bathroom
A correctly measured and installed frameless walk-in shower screen can create a clean, open and practical shower space while helping improve water containment and the overall appearance of your bathroom. Taking the time to check measurements, waterproofing, structural fixings, glass alignment, support-bar positioning and silicone sealing can make a significant difference to the safety, stability and long-term performance of the installation.
Whether you are planning a new bathroom, renovating an ensuite or replacing an existing shower enclosure, choosing the right fixed glass shower panel for your available space is just as important as installing it correctly.
